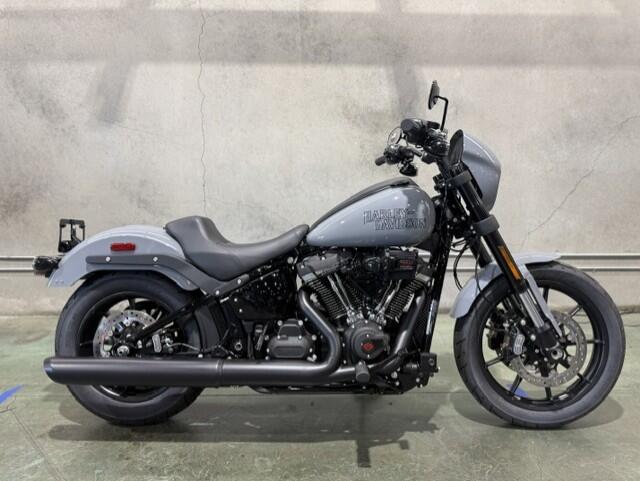

2026 Harley-Davidson® Low Rider® SFor Life in the Left Lane For riders who want more out of every mile, the 2026 Low Rider S brings a sharper edge to factory performance. From its rip-ready suspension to the Heavy Breather intake and performance-tuned 2-into-1 exhaust, this machine is built to cut harder, corner sharper, and rev to the limiter. And with the Milwaukee-Eight® 117 High Output motor and standard Rider Safety Enhancements, it’ll let you ride like you were born for it. Features may include: Design That Demands MoreStripped-down style, dialed all the way in. Blacked-out trim, refreshed paint and graphics, and full LED lighting give the 2026 Low Rider S a look that’s as sharp and unapologetic as the ride it delivers.Blacked-Out and Dialed-InBold graphics and paint sharpen the already aggressive stance on the Low Rider S, with blacked-out trim that keeps the attitude on from tank to tail.All-LED Lighting PackageA 5.75” (146 mm) LED headlamp, LED taillight, and LED turn signals cut through the dark and keep you visible from every angle, day or night, rain or shine.Steep-Backed Solo SeatThe steep-backed solo seat locks you in place so you can ride with the bike, not against it. Launch harder, corner deeper, and stay planted every inch of the way.Premium Paint + GraphicsFrom the deep tone of Dark Billiard Gray to the flash of White Onyx Pearl, there are five distinct colorways to make the Low Rider S yours. Choose chrome or black trim to match your edge, with Blood Orange and Aurora Blue Denim reserved for riders who want their blacked-out bikes to stand out even louder.The Proof Is in the PerformanceThe Milwaukee-Eight 117 High Output motor, Heavy Breather intake, and a performance-tuned 2-into-1 exhaust, paired with a performance-retuned suspension make every twist of the throttle feel like an act of hostility. Taller rear shocks boost lean angle and comfort, so you can learn your limits.

Specifications

Dimensions

add remove
- Length:

  92.9 in
- Seat height, unladen:

  28.1 in
- Rake (steering head):

  28
- Trail:

  5.7 in
- Wheelbase:

  63.6 in
- Tires, front specifications:

  110/90B19,62H,BW
- Tires, rear specifications:

  180/70B16,77H,BW
- Fuel Capacity:

  5.0 gal
- Oil capacity:

  5 qt.
- Weight, as shipped:

  644 lbs
- Weight, in running order:

  670 lb
- Tire, type:

  Michelin® Scorcher 31, front and rear
Engine

add remove
- Engine:

  Milwaukee-Eight® 117 High-Output
- Bore:

  4.1 in
- Stroke:

  4.5 in
- Displacement:

  117.35 in³
- Compression ratio:

  10.3:1
- Fuel system:

  Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust:

  2-into-1; catalyst in header
Performance

add remove
- Engine torque testing method:

  J1349
- Engine torque:

  128.3 ft-lb
- Engine torque (RPM):

  4000
- Horsepower:

  114 HP / 85 kW @ 5000 rpm
- Lean angle, right (deg.):

  31.3
- Lean angle, left (deg.):

  31.3
- Fuel economy testing method:

  Estimated City/Hwy
- Fuel economy:

  47 mpg (5 l/100km)
Powertrain

add remove
- Primary drive:

  Chain, 34/46 ratio
- Gear ratios (overall) 1st:

  9.311
- Gear ratios (overall) 2nd:

  6.454
- Gear ratios (overall) 3rd:

  4.793
- Gear ratios (overall) 4th:

  3.882
- Gear ratios (overall) 5th:

  3.307
- Gear Ratios (overall) 6th:

  2.79
Chassis

add remove
- Front fork:

  Single cartridge 43 mm inverted with aluminum fork triple clamps; triple rate spring
- Rear shocks:

  Hidden, free piston, coil-over monoshock; 56 mm stroke; hydraulic preload adjustment
- Wheels, front type:

  Black, Radiate Cast Aluminum
- Wheels, rear type:

  Black, Radiate Cast Aluminum
- Brakes, type:

  Front and rear black, Split 7-spoke floating rotors
- Brakes, caliper type:

  4-piston fixed front and 2-piston floating rear
